HGLRC BATMAN220 220mm 5.8G 48CH F4 600TVL Camera FPV Racing Drone Quadcopter w/ Frsky XM+ Receiver BNF
HGLRC BATMAN220 220mm 5.8G 48CH F4 600TVL Camera FPV Racing Drone Quadcopter w/ Frsky XM+ Receiver BNF

HGLRC BATMAN220 220mm 5.8G 48CH F4 600TVL Camera FPV Racing Drone Quadcopter w/ Frsky XM+ Receiver BNF

Regular price
$479.04
Sale price
$479.04
Shipping calculated at checkout.

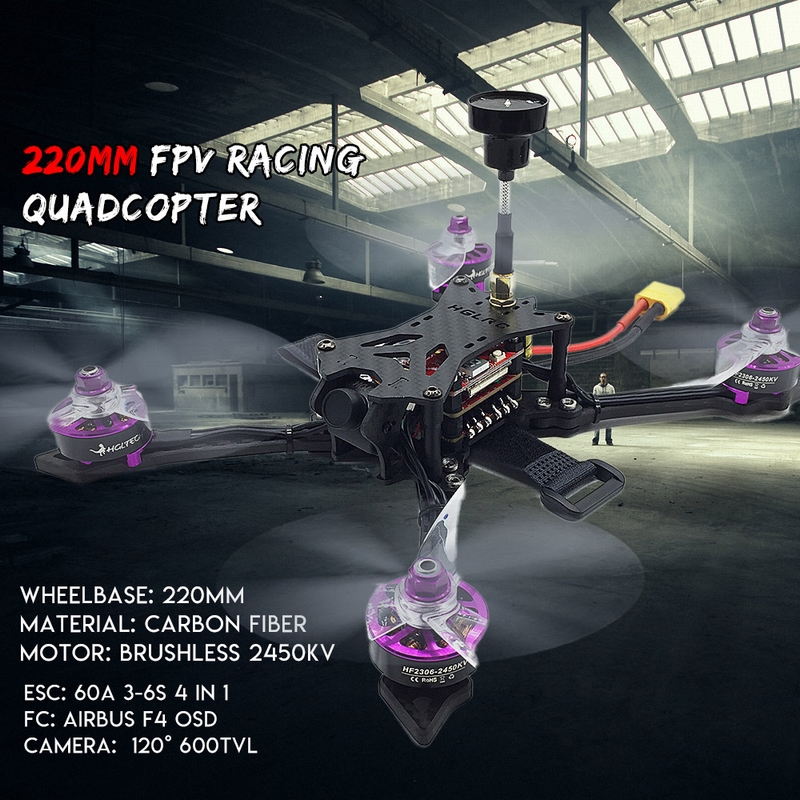

Welcome to our store, you can meet what you want! ATMAN220, a new popular Racing Drone made of Carbon Fiber comes with lots of powerful accessories such as AIRBUS F4 OSD Flight Control Board,  Frsky XM+ receiver, DinoShot 60A BLHeli_32  3-6S 4 In 1 ESC, HGLRC GTX585 VTX FPV Transmitter, HGLRC XJB-ELF Camera, HGLRC HF2306 2450KV motor. Exquisite craftsmanship, outstanding appearance and perfect quality, it is the best choice for FPV Racing, you can not miss it.

Feature:
Easy to assemble, X-structure is much more suitable for FPV racing drone
Highly integrated with flight control ESC system and Frsky XM+ receiver OSD module with low voltage monitoring function
220mm carbon fiber frame kit, anti-crash and durable, pre-tuned PID to optimize BetaFlight firmware for better flight performance
BATMAN220 FPV Racing Quadcopter with 220mm Wheelbase, 5mm Arm Plate Thickness and 2mm Bottom Plate Thickness, durable structure
Powerful Components: AIRBUS F4OSD Flight Control, 60A BLHeli_32 3-6S 4 In 1 ESC, GTX585 VTX Video transmitter, ELF 600TVL SONY Super HAD II CCD Camera for FPV Racing

Specifications:
Brand Name: HGLRC
Item Name: 220mm Carbon Fiber Frame Kit
Model: BATMAN220
Wheelbase: 220mm
Arm Plate Thickness: 5mm
Bottom Plate Thickness: 2mm
Main Material: Carbon Fiber

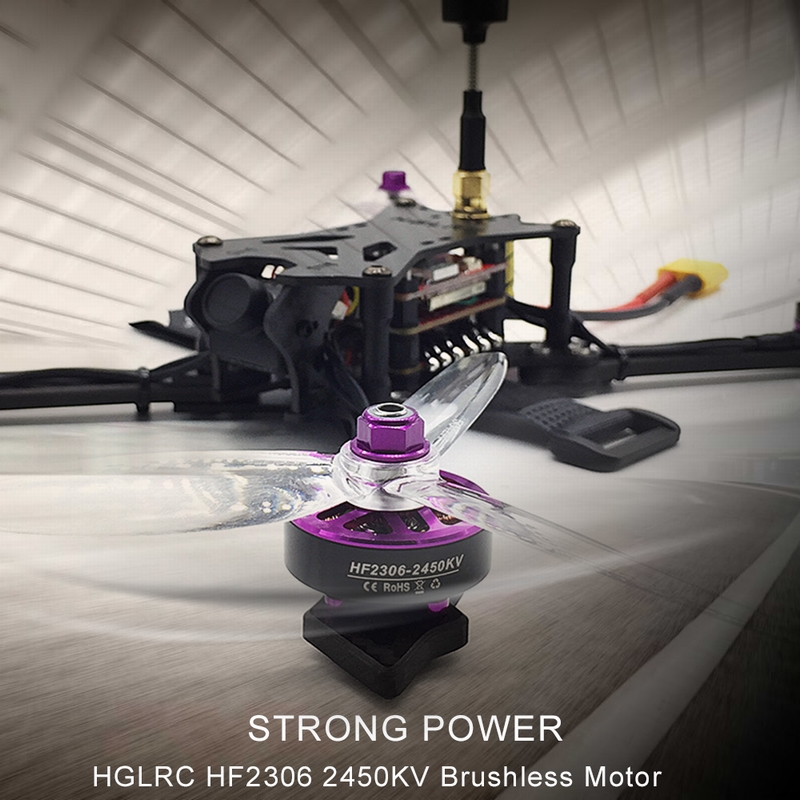

Motor: HGLRC HF2306 2450KV
Receiver: Frsky XM+

FC:
Item Name: AIRBUS F4 OSD Flight Control Board ( D-Shot Version)
MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K
Black Box: Flash 16M
Input Voltage: 2-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 36 * 36mm board, 30.5mm mounting holes (M3)
Weight: 8.3g
Support SBUS/PPM/DSMX receiver

ESC:
Item Name: DinoShot 60A BLHeli_32 3-6S 4 In 1 ESC
Input Voltage: 3-6S Lipo battery
Constant Current: 60A-4S/50A-5S/40A-6S
Peak Current: 70A
BEC Ouput: NO
Firmware: 32bit ESC with BLHELI_32 firmware
Size: 36 * 36mm (main board) / 40 * 48mm (including pad)
Installing Hole: 30.5 * 30.5mm, M3
Weight: 12.9g
CPU:STM32F051
MOS Tube: TOP QUALITY MOSFET
Protocol: DSHOT1200/600/300/150/Oneshot125/42, MultiShotDamped

FPV Transmitter
Item Name: HGLRC GTX585 VTX FPV Transmitter
Output Power: PIT/25mW/100mW/200mW/400mW/600mW switchable
Control Mode: BFOSD control(RX)/button
BAT: 7-26V, BEC 5V-1A
240mA----400mW
Video System: NTSC / PAL
Antenna: MMCX
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
Size: 20 * 38mm (L * W), Hole: 30.5 * 30.5mm
Weight: 6.8g

FPV Camera:
Item Name: HGLRC XJB-ELF Camera
Image Sensor: 1/3" SONY Super HAD II CCD
Horizontal Resolution: 600TVL
Lens: 2.3mm Lens
FOV: 120 degree (2.3mm)
Signal System: PAL
S/N Ratio: >60dB(AGC OFF)
Electronic Shutter Speed: PAL: 1/50 ~ 100,000; NTSC: 1/60 ~ 100,000
AutoGain Control (AGC): YES
Back light compensation (BLC): YES
Min.illumination: 0.01Lux/1.2F
WDR: D-WDR
DNR: 2DNR
Day/Night: Color / Auto / B&W
Power: DC 5 to 36V
Net weight: 5.2g
Item Size: 19 * 19 * 19mm

Notice:
This is BNF version, without battery, charger, and remote controller.


Package Information:
Package size: 27 * 21 * 7cm / 10.63 * 8.27 * 2.75in
Package weight: 660g
Gift box package

Package List:
1 * HGLRC F4 AIO OSD BEC Flight Control Board
1 * HGLRC 60A BL32_60A 3-6S 4in1 ESC BLHeli_32
1 * HGLRC GTX585 VTX FPV Transmitter
1 * HGLRC XJB-ELF CAMERA
1 * HGLRC 220mm Carbon Fiber Frame Kit
4 * HGLRC HF2306 2450KV
6 * Gemfan 5042 propeller
1 * Battery Strap
1 * Frsky XM+ Receiver
1 * HGLRC Pagoda 5.8G 5dBi RHCP Antenna 5.8G VTX
1 * 80mm 5.8G MMCX LINEAR 2DBI OMNI DIRECTIONAL ANTENNA
